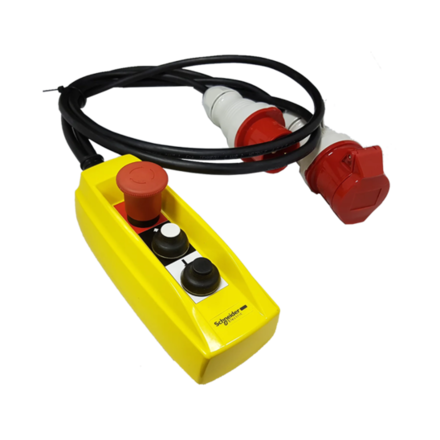

Guardian Direct Control Pickle

The Guardian Direct Control Pickle is designed for use with direct control chain hoists, for local movement of a single hoist.

  • Includes emergency stop
  • Cables are 1.5 metres in length
  • 4 or 5 Pin 16Amp 400V Ceeform plug input
  • 4 Pin output 16Amp 400V Ceeform socket output
  • Rated high voltage push buttons and E-stop
  • Double Insulated IP65 rated enclosure
  • Weight 2.5 kg

Technical specifications

Product codes

GDC-DC-4P, GDC-DC-5P


Power requirements

400V, 3Ph


Input connector

GDC-DC-4P: 4 Pin 400V Ceeform Plug
GDC-DC-5P: 5 Pin 400V Ceeform Plug


Output connector

4 Pin 400V Ceeform Socket


Weight

2.5 kg


Enclosure IP rating

IP65
