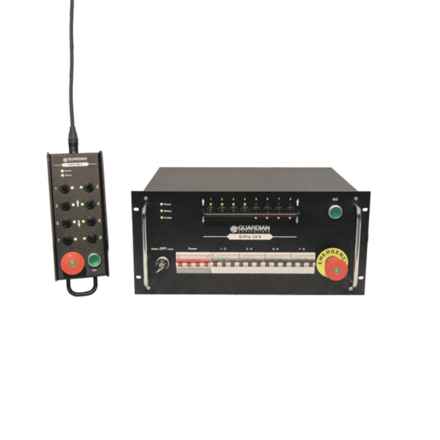

G-Pro Rack Mounted
Low Voltage or direct control
- 4, 8 or 12 channels of linkable control housed in a 5U 19” rack mounted enclosure
- 4 channel controller power - 32A, 400V, 3Ph- Outs power and control 4 pin Cee connectors - one each for power and control
- 8 channel controller power - 63A, 400V, 3Ph- Outs power and control via Socapex connectors- 2 for power, 2 for control
- 12 channel controller power - 63A, 400V, 3Ph- Outs power and control via Socapex connectors - 3 for power, 3 for control
- Local control or via optional digital remote handset
- Linkable GO & E-stop network for linked systems
- Remote in/ link secure digital network via Neutrik 7 Pin XLR connector
- Schneider safety relay with reset button on front panel
- Switchable between pickle/or auto enable mode
- Automatic phase correction
- Automatic voltage check
- LED GO button & channel direction
- LED status/error check
- Optional load cell alarm input link to E-stop
- Works with any G-Pro remote handset but limited by max channels on handset/controller
- CE certified
Accessories & options
- 24 channel handset to control 2 x 12 channel controllers
- Radio control handset
- Full touring systems in fight cases
- Load cell alarm input link to E-stop
