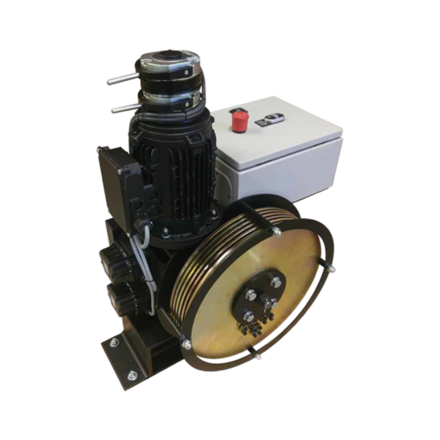

Double Brake Powered Pilewind Winch

For 250, 500 or 1000 kg
  • Standard lifting capacity 250, 500 or 1000 kg
  • Winch with 3 - 6 lines per hoist
  • Power 400V, 3Ph, 50Hz
  • Self- sustaining gearbox
  • Single or double brake with manual lever release
  • Standard winch travel 12 m
  • End of travel and ultimate limits as standard
  • CE certified

Technical specifications

WIN-250

Product codes

WIN-250-3, WIN-250-4, WIN-250-5, WIN-250-6

Lifting capacity

250 kg

No of ropes

WIN-250-3: 3
WIN-250-4: 4
WIN-250-5: 5
WIN-250-6: 6

Rope Dia

5 mm

Brakes

Double

Speed

0.15 - 0.3 m/sec

Motor power

1.1 kW

Weight of Winch

WIN-250-3: 145 kg
WIN-250-4: 152 kg
WIN-250-5: 159 kg
WIN-250-6: 166 kg

WIN-500

Product code

WIN-500-3, WIN-500-4, WIN-500-5, WIN-500-6

Lifting capacity

500 kg

No of ropes

WIN-500-3: 3
WIN-500-4: 4
WIN-500-5: 5
WIN-500-6: 6

Rope Dia

6 mm

Brakes

Double

Speed

0.15 - 0.3 m/sec

Motor power

2.2 kW

Weight of winch

WIN-500-3: 170
WIN-500-4: 177
WIN-500-5: 184
WIN-500-6: 191

WIN-1000

Product code

WIN-1000-3, WIN-1000-4, WIN-1000-5, WIN-1000-6

Lifting capacity

1000 kg

No of ropes

WIN-1000-3: 3
WIN-1000-4: 4
WIN-1000-5: 5
WIN-1000-6: 6

Rope Dia

6 mm

Brakes

Double

Speed

0.04 - 0.07 m/sec

Motor power

1.5 kW

Weight of winch

WIN-1000-3: 197
WIN-1000-4: 204
WIN-1000-5: 213
WIN-1000-6: 220

Accessories & options

  • Local control panel mounted on winch
  • Encoders
  • Wire rope pulleys (see separate datasheet for options)
  • Wire ropes can be provided on request
