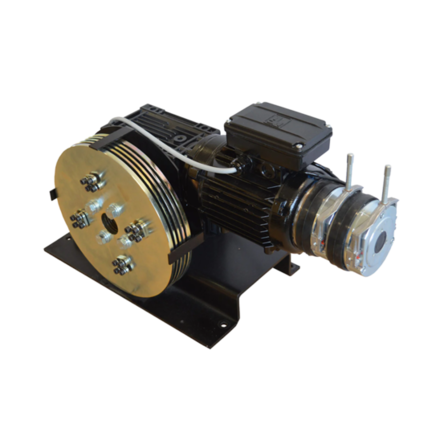

Mini Powered Pilewind Winch
For 150 kg
- Standard lifting capacity 150 kg
- 1-4 lines per hoist
- Diameter of wire - 4 mm
- Rope keeps
- Power 400V, 3Ph, 50Hz, 0.75 Kw
- Self sustaining gearbox
- Double brake with manual lever release
- Standard winch travel -9 m
- 3600 spool access
- Local control – up/down, e-stop
- Limit switches – „absolute” and „travel”
- Floor, wall or ceiling mounting
- CE certified
Technical specifications
WIN-150
Accessories & options
- Different lifting speed
- Soft start/stop, variable speed
- No local control (terminal connectors)
- Encoder
- Overload/underload sensing by separate
- load pulley unit
- Motor overheat sensor
- Brake release sensors
