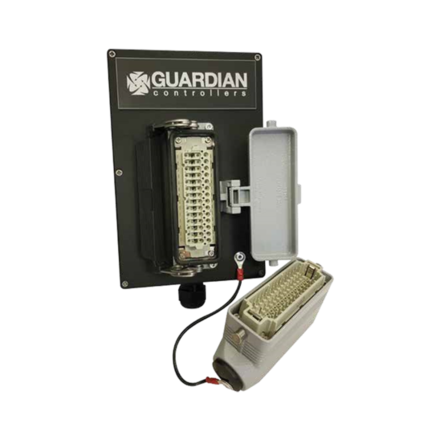

Guardian Control Connection Box

Remote Stage Box
  • Low voltage control
  • Power 400V - 3Ph - 50Hz
  • Motor channels 8 - Squich ILME Connector 27 Pin
  • Motor channel 12 - Squich ILME Connector 42 Pin
  • Highly robust enclosure protection class IP67
  • ILME plug IP65 rated
  • Robust acrylic stove black finish
  • Push terminal connection type for quick and easy termination of cable

Technical specifications

Product codes

INT/BOX27PIN, INT/BOX42PIN


Control specification type

Low voltage


Maximum terminal CSA

2.5 mm2


Max control voltage

42V


Dimensions

212 x 146 x 56 mm


Maximum hoist control

INT/BOX27PIN: 8
INT/BOX42PIN: 12


Enclosure IP Rating

IP67


Plug (control) specification

INT/BOX27PIN: ILME 27 PIN SQUICH CONNECTOR
INT/BOX42PIN: ILME 42 PIN SQUICH CONNECTOR


Socket IP Rating

IP65


Enclosure finish

Black


Weight

INT/BOX27PIN: 0.9 kg
INT/BOX42PIN: 1.1 kg


Customer's benefit

To compliment our range of Guardian Controller are the Control Box Range. These boxes are designed to provide a local control connection point for the handheld remote handset, away from the main controller setup. This can be particually useful if space is a premium on stage, or if the controller has to be located in an area that isn’t with linesight of the motorised hoists being moved. The box is small and light, with a Robust ILME multipin connector for secure and stable connections, that won’t get damaged during normal use.
